상세 정보 |
|||
| 이름: | 큰 화면 프로필 프로젝터 | 프로젝션 영상: | 인버트됩니다 |
|---|---|---|---|
| 금속 Table′ 사이즈: | 404*265mm | 글라스 Table′s 사이즈: | 270*170mm |
| 여행 x 축을 실시하세요: | 200mm | 여행 Y 축을 실시하세요: | 100 밀리미터 |
| 여행 Z 축을 실시하세요: | 50 밀리미터 | 결의안: | 0.5M |
| 측정 단위: | 리니어 스케일에 구축됩니다 | 정확도: | 2.5+L/100 |
| 식자재원산지정보: | 둥관 | HS는 코드화됩니다: | 9031491000 |
| 공항: | 센즈헨, 중국 | ||
| 하이 라이트: | VOC600 광학 도량형 장비,50 밀리미터 광학 도량형 장비,플로어 스탠딩 프로필 프로젝터 |
||
제품 설명

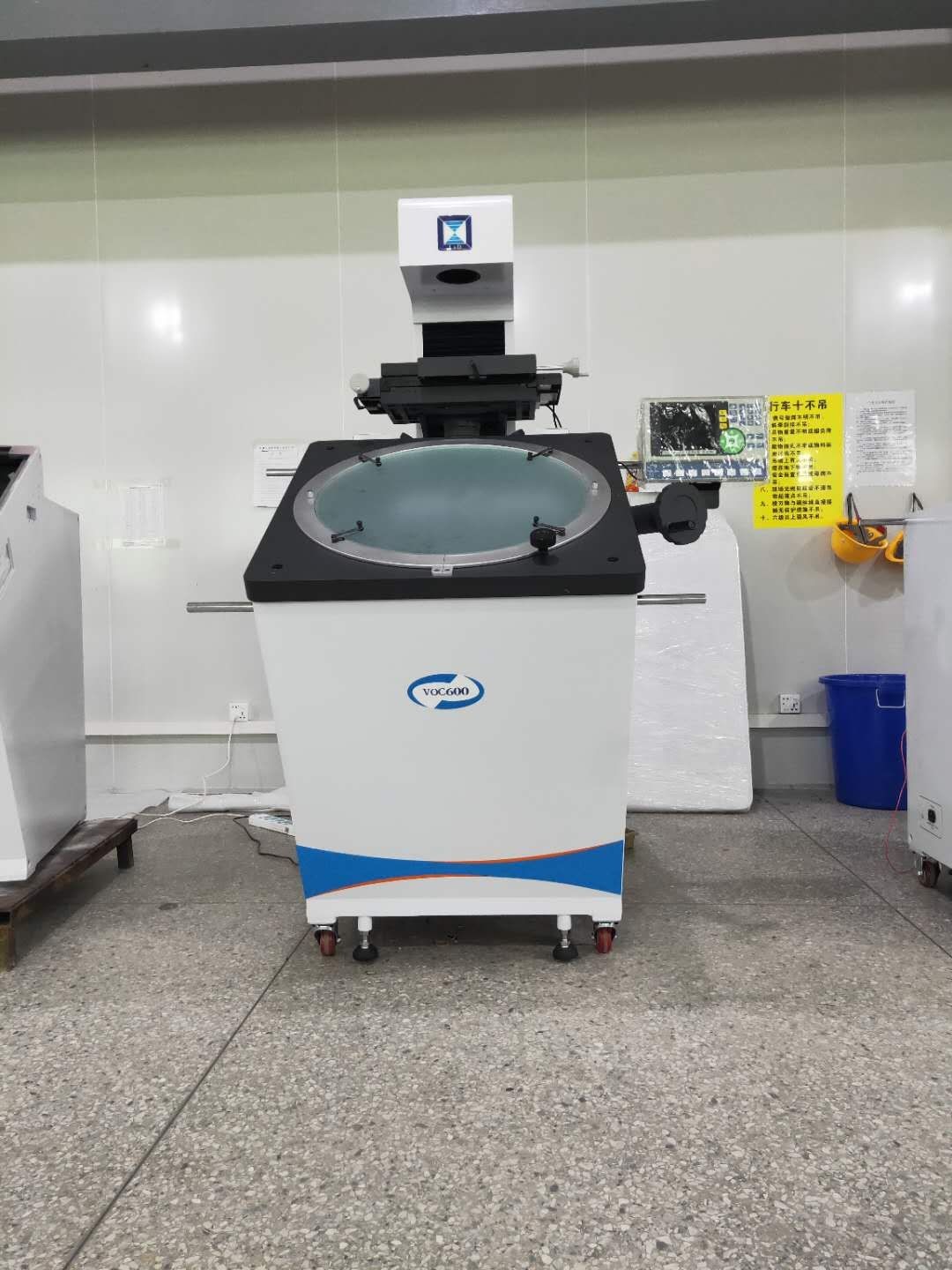

VOC600 광학 비교기 도량형 장비를 세우는 큰 화면 바닥
VOC600 series large Floor standing Profile Projector are precise and excellent non-contact optical measuring instrument integrate with the technology of optic, mechanic, electricity and computer.
The Floor-standing model ¢ 600 Profile Projector is specially used to inspect the phone backlight, LCD, Gear, sealing strip for car, etc.
Features & Advantage
1. Floor-standing model Profile Projector using overhead illumination which allows a large, conveniently positioned screen so that projected images can be easily traced or compared with a template.
2. Digital readout protractor screen (including zero-setting, ABS/INC coordinate switching functions) for easy and error-free angle measurement.
3. The standard oblique surface illumination unit provides clear and bright images, allowing easy inspection of non-reflective work-pieces such as plastic parts or printed materials.
4. The optional optical edge detector eliminates human errors which may be involved in visual alignment, ensuring speedy, accurate, and consistent measurements, regardless of operator's skill.
Technical parameter
| Model | VOC 600-200*100 |
| Projected image | Inverted |
| Metal table' s size(mm) | 404*265 |
| Glass table' s size(mm) | 270*170 |
| Stage Travel X-axis | 200mm |
| Stage Travel Y-axis | 100mm |
| Stage Travel Z-axis | 50mm(for focus) |
| Resolution | 0.5µm |
| Measuring unit | Built-in linear scales |
| Accuracy | (2.5+L/100)µm |
| Screen | Screen Diameter: 615mmwith 4 film clips |
| Screen material: fine ground glass | |
| Reference line: Staggered cross and crosshair | |
| Screen rotary range: 0° -360° | |
| Rotary angle resolution: 1' or 0.01° (switchable) | |
| Digital Readout | DC-3000 Counter with RS232 output 1. Measure, preset and construct the graphic elements such as the point, line, circle, angle, distance, rectangle, thread and so on 2. Convenient axis-skew and coordinate shift 3. Quickly data getting by foot-switch and edge detector(option) 4. Print out user program, graphic elements and displayed three-axis coordinates. 5. Transfer current linear scale positions to PC by RS232. 6. Record the measuring steps and the measure the same word pieces in batch puantity 7. Various coordinates displaying ways: Polar, Cartesian, INC and ABS coordinates in Metric units or Imperial units. 8. Linear error correction and segmental linear error correction 9. Connect with linear scale or rotary encoder with Z-axis. 10. Store 100 permanent graphic elements and 10 temporary graphic elements 11. DC3000 metrology counter support English and Simplified Chinese display interface |
| Illumination | • Contour illumination: 24V/150W halogen bulb • Optical system: Zoom Telecentric system Oblique reflected illumination: 24V/150W halogen bulb (available with 50x lens and 100x lens) Vertical reflected illumination: 24V/150W halogen bulb • Light source: Halogen bulb (24V, 150W) • Optical system: Vertical illumination |
| Focusing | Manual focus |
| Power | AC100-240V, single phase 50/60Hz, Total power 650W |
| Cooling | Built-in cooling fans |
| Dimension | 1200(mm)*1138(mm)*1938(mm) |
| G. W/N. W | 590KG/360KG |
Objective lens
| Objective lens | Magnification | 5X | 10X | 20X | 50X | 100X |
| View field diameter | 120 | 60 | 30 | 12 | 6 | |
| Working Distance(mm) | 242.8 | 143.2 | 85.5 | 92 | 48.5 | |
| Max. workpiece height | 50 | 50 | 50 | 50 | 48 |
